ACCL (ALMR) 900

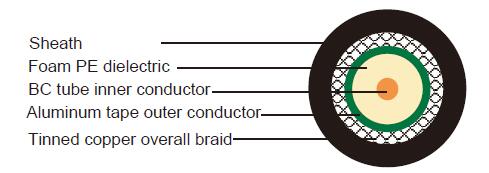

Construction
Inner conductor |
BC tube |
Φ6.65 mm |
|---|---|---|
Dielectric |
Foam PE |
Φ17.27 mm |
Outer conductor |
Aluminum Tape |
Φ17.42 mm |
Overall Braid |
Tinned Copper |
Φ18.59 mm |
Sheath |
LSZH |
Φ22.10 mm |
Flame retardance |
IEC60332-3-22 |
|
Electrical & Mechanical Characteristics
Impedance |
50±3 Ohm |
|---|---|
Nominal capacitance |
76.6 pF/m |
Velocity of propagation |
87% |
Insulation resistance |
>5000 Mohm.Km |
Inner conductor resistance |
1.77Ohm/Km |
Outer conductor resistance |
1.8 Ohm/Km |
Operating temperature range |
-40°C - +85 °C |
Min.bending radius |
76.2 mm |
Attenuation
| Frequency(MHz) | Attenuation (dB/100 ft) |
Max. Attenuation(dB/100ft) |
|---|---|---|
| 30 | 0.3 | 0.44 |
| 50 | 0.4 | 0.53 |
| 150 | 07 | 0.77 |
| 220 | 0.8 | 0.9 |
| 450 | 1.2 | 1.32 |
| 900 | 1.7 | 1.9 |
| 1500 | 2.2 | 2.5 |
| 1800 | 2.5 | 2.8 |
| 2000 | 2.6 | 2.9 |
| 2500 | 3.0 | 3.3 |
| 3000 | 3.4 | 3.8 |
| 5800 | 4.9 | 5.4 |
